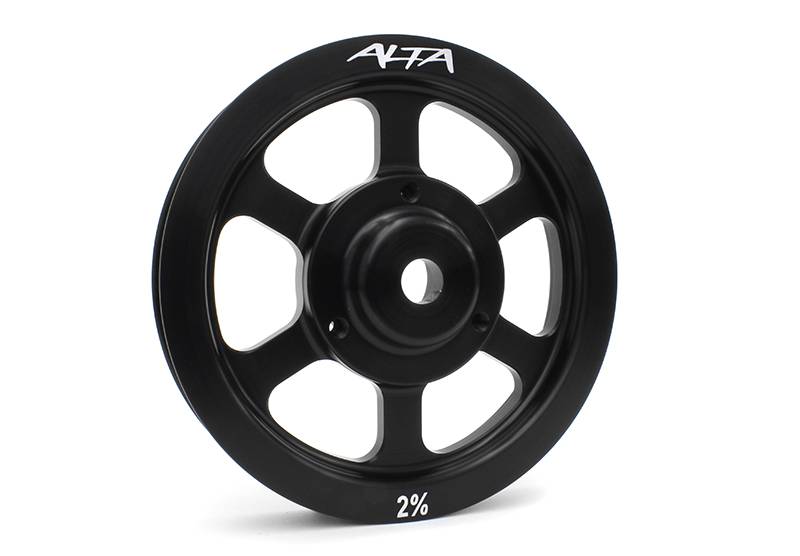

Crank Pulley, Light weight R53 for Supercharged Engine
Crank Pulley, Light weight R53 for Supercharged Engine
Crank Pulley, Light weight R53 for Supercharged Engine
SKU: AMP-ENG-520

Crank Pulley, Lightweight R53 for Supercharged Engine

$129.20 $152.00
IN-STOCK
Size:2%
The ALTA Lightweight Crank Pulley increases horsepower and reliability with a stronger one piece design. Choose 0% for OEM boost or +2% for added supercharger performance.

PROPOSITION 65

Proposition 65 Warning

WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands.

For more information see: www.P65Warnings.ca.gov/motor-vehicle-parts

OFF ROAD USE ONLY

This product is legal in California only for racing vehicles which may never be used upon a highway. Check your local and federal laws prior to installation.

ESTIMATED DIY INSTALL TIME:
120 MINUTES
EMAIL OUR TECH DEPARTMENT:

Download Instructions

Specs & In The Box

Specifications

  • Material 6061 Billet Aluminum
  • Finish Black Anodizing
  • 0% Weight .90 lbs.
  • 2% Weight 1.0 lbs.

In The Box

  • (1) ALTA Lightened Crank Pulley
  • Warranty & Instructions

Warranty

5 YEAR WARRANTY

Compatibility
Crank Pulley, Light weight R53 for Supercharged Engine

Performance

The ALTA Lightweight Crank Pulley increases horsepower and torque by reducing rotational mass. The 0% Stock Size version maintains factory diameter while delivering faster engine response with no added vibration, bearing stress, or charging issues. The +2% Overdrive version offers the same lightweight benefits but increases crank diameter. On supercharged models, this spins the supercharger faster for safely increased boost and performance.

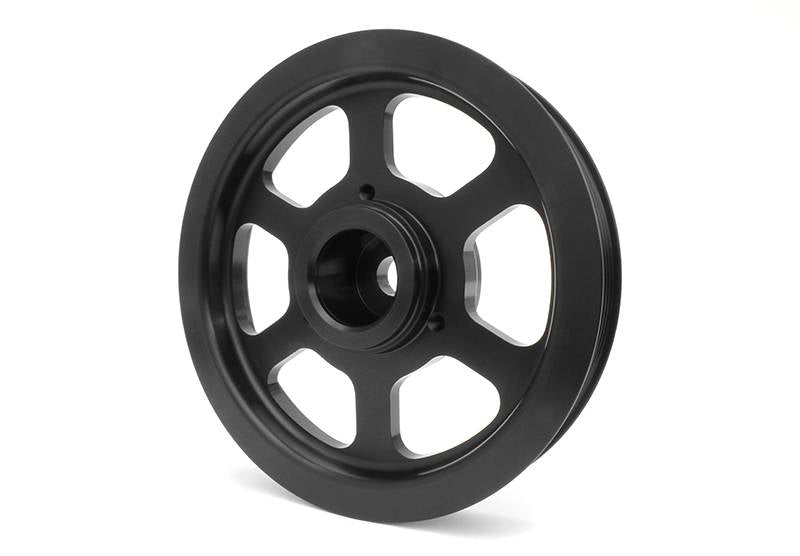

Construction

Machined from high strength 6061 T6 aluminum, the ALTA Lightweight Crank Pulley is engineered for strength, durability, and reduced rotational mass. The 0% pulley weighs 0.90 lbs, while the +2% Overdrive version weighs 1.0 lb. Unlike the factory two-piece pulley design, which is known to separate and cause tensioner damage, the ALTA one piece construction eliminates this common failure point for improved long-term reliability.

Crank Pulley, Light weight R53 for Supercharged Engine

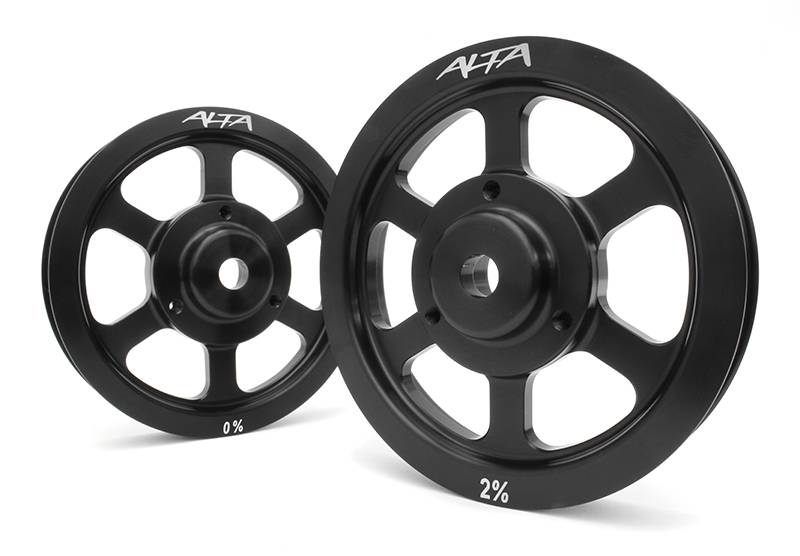

Two Size Options

The 0% Stock Size pulley maintains factory crank diameter, making it ideal for drivers who want improved response and reliability while keeping OEM boost levels. The +2% Overdrive pulley slightly increases crank diameter to spin the supercharger faster. This effectively increases boost, turning a 15% pulley into a 17%, and a 17% into a 19%. The larger diameter also improves belt wrap, helping reduce slip and decrease belt wear under load.
